歐洲委員會的估算和專業卡車期刊的測試數據顯示，歐洲重型卡車的平均百公里油耗為31-38升（6-8mpg）。這個耗熱率聽起來很低，但是考慮到一輛大型卡車的重量可以高達40噸以上，情況就截然不同了。
卡車燃油主要有兩個用途，一是克服極大的車重，使汽車加速至公路行駛速度，二是牽引卡車上坡。在歐洲的普通道路和高速公路上行駛的數百萬輛重型卡車所造成的二氧化碳與柴油顆粒排放，占?xì)W盟總排放量的五分之一。
滿載的大型卡車重量極大，因此車輛在減速、下坡、頻繁起停以及其他負載瞬變過程中所損失的能量，可以通過再生制動系統進行回收，從而提高燃油經濟性并減少尾氣排放。
位于法國斯特拉斯堡的初創企業Adgero正在研發一種混合式儲能增壓系統。它由一個動能回收系統（KERS）和一個電動驅動裝置組成，可安裝于半掛拖車的下方。公司稱，Adgero混合系統（Adgero Hybrid System）將是針對重型卡車開發的第一個KERS。
根據路面和交通情況，這個改裝系統可以節約15-25%的燃油與排放，公司創始人兼首席執行官M(fèi)ack Murray表示。Adgero混合系統采用了愛沙尼亞Skeleton Technologies公司提供的800 V超級電容器組、一家歐洲著名加速輔助設備制造商生產的電動驅動橋、以及無線智能管理系統Adgero監控器（Adgero Monitor），該監控器可根據前方駕駛員的情況，產生輸入信息，對后方車輛的再生制動與加速進行控制。
該系統正在申請專利。Murray表示，僅靠節省下來的能耗，就能使用戶安裝后3-4年內收回投資。如果能獲得稅務局的環境補貼，那么投資收回的時間還可進一步縮短。Adgero最近正在和一家歐洲著名的半掛拖車制造商協商，希望將該系統整合進他們的生產線內。
油電混合改裝
“我們希望實施改裝的目標客戶，是經營半掛車車隊的租賃公司和承租客戶，尤其是那些拖車可單獨運輸?shù)墓?鐵路多式聯運的運輸系統，如Lohr、CargoBeamer或MegaSwing的系統，”他表示。只要是過去15年內生產的卡車拖車都可兼容。“因?yàn)橥宪嚿蠜]多少空間，所以我們只能將緊湊的儲能與控制設備置入I型梁底盤下方。”
“最理想的是公路/鐵路多式聯運系統，” Murray解釋，“比如說，來自挪威的魚用卡車送往鐵路儲存站，接著用半掛拖車送往西班牙和其他地中海城市的倉庫，卸貨后裝滿水果再回到挪威。”
盡管大部分歐洲的重型卡車行駛線路都不到200 km（12.5英里），但是混合動力運輸系統依然能節省燃油。英國、荷蘭和德國是Adgero的首要目標市場，而法國的情況更加復雜一些。
Adgero團隊認為，給拖車通電，比使用油電混合牽引車更合理，這是另一種回收柴油機能量的方法， Freightliner新推出的12mpg的SuperTruck概念車就采用了這種技術。“用一根600 V的纜線”將牽引車和被通電的拖車連起來，“然后你就可以像駕駛豐田普銳斯那樣駕駛它。但這不是最好的方案，”他表示。使用普通的混動系統，需要位于鐵路運輸路段兩端的拖車公司購置新卡車。“而我們可以提供同樣的效果，而且不用購置新車。”
這個全新的捆綁式驅動單元包含一臺200 kW電機，它的轉速高達2900rpm，轉速為零時最大扭矩可達750 牛·米 (550 lb·ft) ，并且已經通過了道路使用認證，使用年限可超過普通拖車的10年壽命。根據所使用懸架的不同，可使用電動驅動橋取代拖車架上的標準三橋架構（如LeciTrailer的curtainsider）中未受驅動的中央橋，因?yàn)樵撗b置總是與地面接觸。
Adgero保證，這個改裝系統能夠與現有的架構完全兼容。如果一輛沒有監控器的卡車配上了裝有Adgero系統的拖車，那么這個混合動力系統就會處于待機模式，其拖車也與普通的拖車并無區別。
Adgero是Murray在多年前與一些企業家共同創辦的公司，他的合作伙伴包括首席技術官Gine?s Linares、軟件研發主管Soun Schuller和首席數據官Fre?de?ric Soulier。
超電容器組的儲能解決方案
“通過與Skeleton Technologies開展合作，我們將世界上最先進的超電容器組作為我們系統的核心，” Murray表示。“在以能量密度為關鍵衡量指標的卡車行業，這將給我們帶來巨大的優勢。” Skeleton使用一種獲得專利的石墨烯材料，它具備更好的傳導性能和更大的表面積，因此它的能量密度和功率密度分別可達到競爭產品的兩倍和五倍。
“為了幫助Adgero實現他們的解決方案，” Skeleton首席技術官Volker Dudek表示，“我們專門研發了一種智能功率模塊，通過一種獲得專利的管理系統，對能量和功率進行智能監控，使其滿足客戶要求。”
去年，Skeleton的專家與Adgero團隊合作，對一臺原本在賽車上使用的800 V超電容器電源模塊進行改造，使其符合道路運輸車輛的需求。該模塊由5個160 V的圓柱體蓄電池組構成，并可對每個電池單體進行監控，使其主動保持平衡。
Murray稱，過去數月內Adgero混合系統經過了嚴格的振動、沖擊和浸泡測試。2016年，法國物流公司Altrans還將對其進行道路測試。
Adgero和Skeleton Technologies打算逐漸增加產量，目標是在2020年前每年產量達到8000-10,000臺。試生產期間（2016-2017年）的成本將為45,000歐元（50,600美元）左右，2018年，產品將以25,000歐元（28,000美元）的售價上市。盡管Adgero團隊目前僅專注于歐洲的卡車市場，但Murray表示，這個技術概念也可能適用于北美和亞洲。
Murray還指出，Adgero的開放式電氣總線和超電容器組可為改裝車的行駛和其他車輛功能提供不間斷的動力，比如4G網絡、車載娛樂信息系統、車輛狀態報告、用戶可配置子系統，以及包括自動拖車跟蹤、監控和控制、自動載荷監控、聯合運輸用的車隊管理線路優化在內的網絡數據服務等。
作者：Steven Ashley
來源：SAE《非公路用車雜志》
翻譯：SAE 上海辦公室
Fuel-saving KERS for big-rig trucks
The average European heavy-duty truck burns from 31 to 38 L of diesel fuel per 100 km of travel (6 to 8 mpg), according to European Commission estimates and truck magazine tests. That might sound like low fuel economy until one considers that a big-rig truck can weigh 40 ton (36 t) or more.
Accelerating such large masses to highways speeds and dragging them up hills account for a big chunk of the trucks’ overall fuel use. Road haulage by the millions of heavy trucks that ply European roads and highways accounts for more than a fifth of the European Union’s total output of carbon dioxide and diesel particulate emissions.
The great weight of fully laden big trucks, of course, provides an opportunity to recapture some of the energy that’s typically lost during deceleration, downhill travel, stop-and-go traffic, and other load transients using regenerative braking systems, which boost fuel economy and cut tailpipe emissions.
Adgero, a start-up firm that’s based in Strasbourg, France, is developing a parallel hybrid storage-boost system—essentially a kinetic energy recovery system (KERS) and an electric drive unit—that can be mounted under semi-trailers. The Adgero Hybrid System, it is claimed, is the first KERS for heavy-duty trucks.
Depending on the terrain and traffic conditions, the retrofit can save from 15% to 25% in fuel and associated emissions, said founder and CEO Mack Murray. The Adgero Hybrid System comprises an 800-V ultracapacitor bank supplied by Estonia’sSkeleton Technologies, an electric drive axle from a major European manufacturer for acceleration assistance, and the Adgero Monitor, a wireless intelligent management system that tracks driver input up front to control the regenerative braking and acceleration boost at the rear.
The patent-pending design can pay for itself in three or four years through reduced consumption alone, Murray maintained, and where expected tax climate subsidies become available the payback could be even quicker. The company has recently entered negotiations with a major European semi-trailer manufacturer to potentially integrate the new Adgero design into its production lines.
Electric-hybrid retrofit
“We want to retrofit semi-trailer fleets of lessors and leasing customers, particularly those that are used in road/rail intermodal systems in which the trailer travels alone as they do in Lohr, CargoBeamer, or MegaSwing systems,” he said. Any truck trailer made in the last 15 years is compatible. “There’s not much space on a trailer so we shoehorned” the compact energy storage and control add-ons into the I-beam chassis understructure.
“A perfect road/rail transport corridor for us,” Murray explained, “would be the shipping route by which Norwegian fish is trucked to rail depots where it is sent in detached semi-trailers down to Spain and other Mediterranean countries where they are trucked to warehouses that empty them of fish and fill them with fruit to be shipped back up to Norway.”
But even though the majority of European heavy-duty truck trips are less than 200 km (125 mi), the hybrid drive can save fuel. Great Britain, the Netherlands, and Germany are the company’s initial target markets, he noted, though France is more problematic.
The Adgero team thinks electrified trailers makes more sense than electric-hybrid tractors, an alternative way to recapture diesel fuel energy, one that is used, for example, by the Freightliner’s recent 12-mpg SuperTruck concept, which links tractor to powered trailer “with a 600-V line and so can operate like a Toyota Prius. It’s not the best solution,” he said. Conventional hybrid systems would require the hauling companies at both ends of the rail links to purchase new trucks. “We can do the same without the need for new trucks.”
The new strap-on drive unit, which contains a 200-kW motor capable of spinning up to 2900 rpm and providing a maximum torque of 750 N·m (550 lb·ft) at zero rpm, is certified for road use and has been engineered to exceed the typical 10-year lifetime of an average trailer. Depending on the suspension, he said, the electric-powered drive axle typically replaces the central undriven axle in a standard three-axle setup on the trailer rig (such as a LeciTrailer curtainsider), which is always in contact with the road surface.
The retrofit system is guaranteed to be fully compatible with existing infrastructure. And if an Adgero-enabled trailer is picked up by a truck with no monitor, the hybrid system simply stays in standby mode and acts like any other trailer.
Murray formed Adgero a couple of years ago together with fellow entrepreneurs co-founder and Chief Technology Officer Gine?s Linares, Soun Schuller, the software development leader, and Fre?de?ric Soulier, the chief data officer.
Ultracapacitor storage
“By partnering with Skeleton Technologies, we put the world’s most advanced ultracapacitors at the heart of our system,” Murray said. “This will give us an edge in an industry where energy density is a key metric.” He said that Skeleton uses a patented graphene material that offers better conductivity and higher surface area, and so can deliver twice the energy density and five times the power density of competitors’ products.
“To enable this solution for Adgero,” said Skeleton CTO Volker Dudek, “we developed intelligent power modules with a proprietary management system that allows for smart monitoring and control of the energy/power profile according to customer requirements.”
During the last year, Skeleton specialists worked with the Adgero team to adapt an 800-V ultracapacitor power module that is used in the motorsport industry to meet the needs of road freight vehicles. The module, which comprises five 160-V units that are composed of cylindrical cells, monitors each individual cell to actively balance itself.
In recent months the Adgero Hybrid System has been put through rigorous vibration, shock, and immersion testing procedures, Murray said. In 2016, plans are that the French logistics company Altrans will conduct road tests.
Adgero and Skeleton Technologies aim to ramp up production, with the objective of manufacturing 8000 to 10,000 units annually by 2020. Pre-series models (in 2016 to 2017) are to cost around €45,000 ($50,600), whereas series production models (in 2018) will be priced at €25,000 ($28,000). Although the Adgero team is concentrating on the European truck market, Murray said that the concept could probably work in North America and Asia as well.
Murray noted that the addition of Adgero’s open electrical bus and ultracapacitor bank to a trailer provides the retrofitted trucks with an uninterruptible power supply for services such as 4G, onboard telematics, vehicle-status reporting, and user configurable subsystems as well as network data services such as autonomous trailer tracking, monitoring and control, autonomous payload monitoring, and intermodal-compatible fleet-management route optimization.
Author: Steven Ashley
Source: SAE Off-Highway Engineering Online
Adgero混動系統采用了安裝在牽引車和拖車內部的智能控制單元。

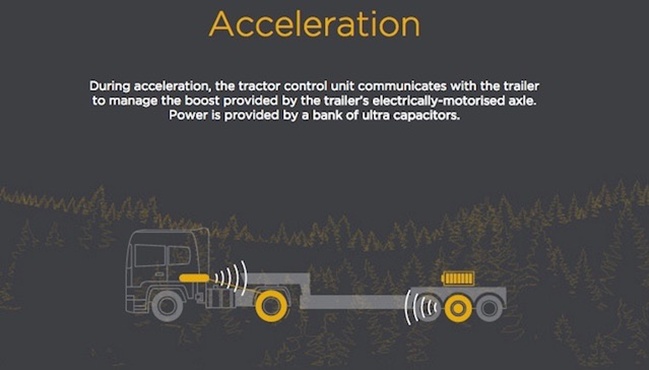

Adgero半掛拖車驅動單元可在加速過程中參與車輛的運行，增強動力。

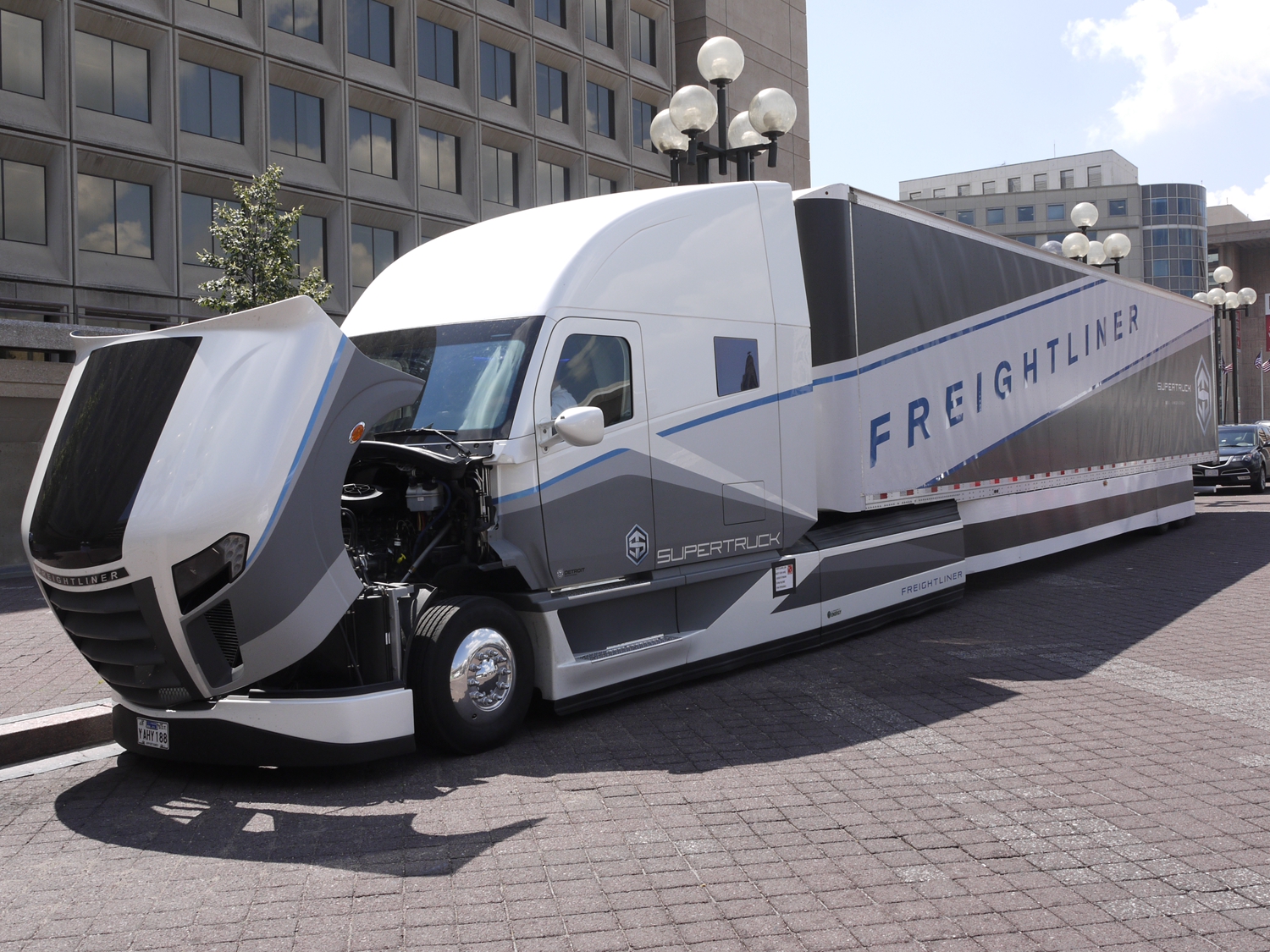

Freightliner的SuperTruck概念車是一輛傳統的柴油混合動力車，油耗為12mpg。

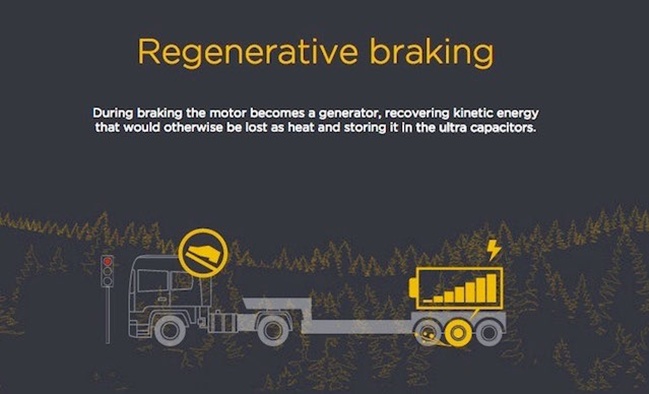

Adgero系統可以將主要在剎車時消耗的能量進行部分回收。
Adgero的創始人與CEO Mack Murray表示，根據路面與交通情況，改裝車可在燃油消耗量和排放水平方面減少15%到25%。
